Surface-Mounted Bollards
When Are Surface-Mounted Bollards the Right Choice?
- Excavation is not possible due to underground services, post-tension slabs, or structural limitations
- Existing concrete surfaces must be retained without cutting or major civil works
- Permanent protection is needed without operable or removable systems
Fixed Bollard Protection Without Excavation
Surface-mounted bollards provide permanent vehicle control and pedestrian protection where excavation is impractical or not permitted. Instead of being embedded into the ground, surface-mounted bollards are fixed directly to existing concrete slabs using engineered base plates and mechanical fixings.
This installation method makes surface-mounted bollards a popular choice for retrofit projects, upgrades to existing facilities, and sites where underground services, structural slabs, or construction constraints prevent in-ground installation.
MSA Bollards’ Sentry Surface-Mounted Bollards are designed to deliver reliable performance in commercial, industrial, and public environments while allowing flexibility during installation.
What Are Surface-Mounted Bollards?
Surface-mounted bollards are fixed bollards installed above ground using base plates anchored into concrete. Unlike in-ground bollards, they do not rely on embedment depth for strength. Instead, performance is achieved through:
Heavy-duty steel construction
Engineered base plates
Mechanical anchors fixed into suitable concrete substrates
This makes surface mounting an effective solution when ground penetration is restricted or when installation needs to be completed quickly with minimal disruption.
Where Surface-Mounted Bollards Are Commonly Used
Sentry Surface-Mounted Bollards are commonly installed in:
Commercial buildings and office complexes

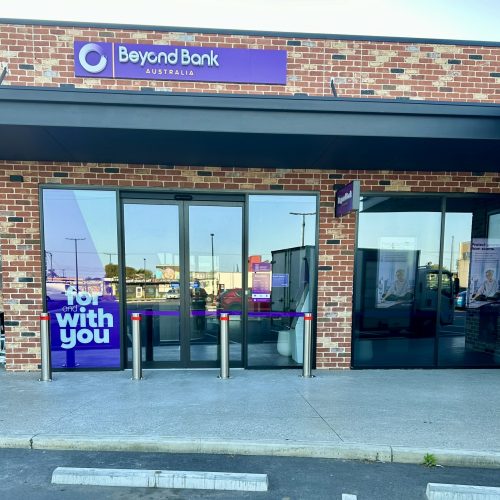

Retail centres and shopfronts
Car parks and loading areas

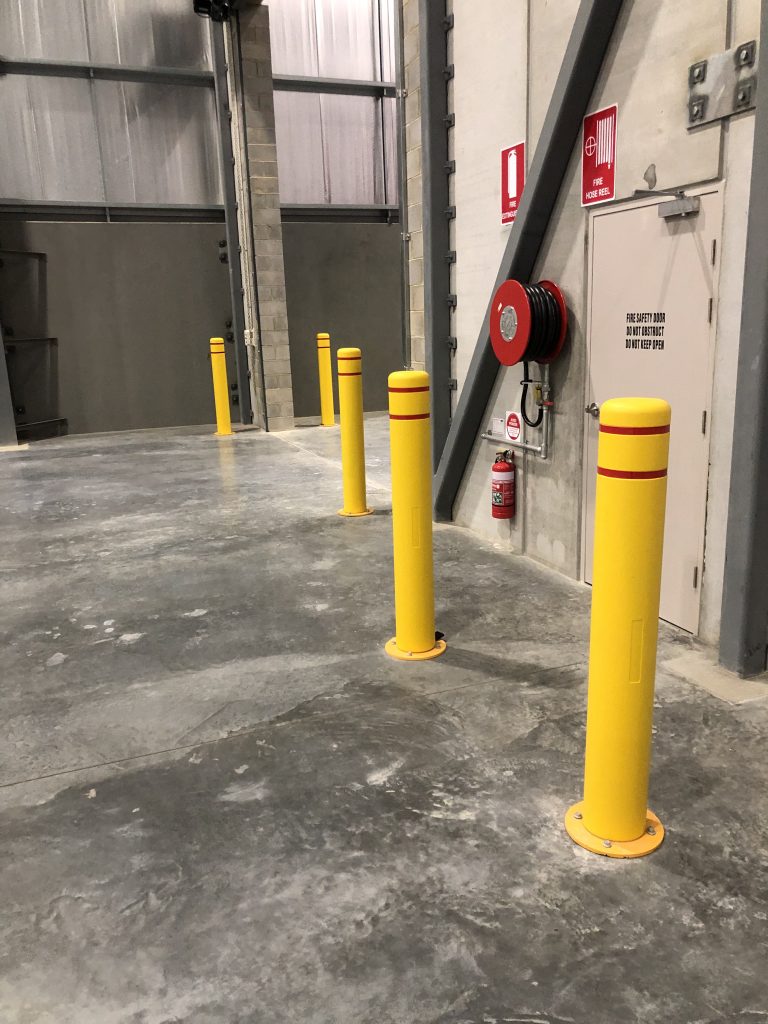

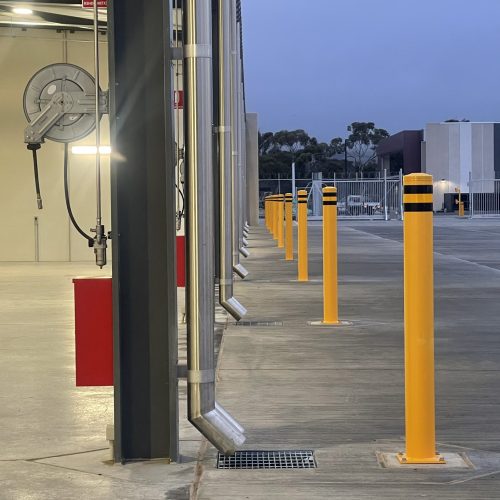

Warehouses and industrial facilities
Hospitals, universities, and public buildings
Sites with post-tension slabs or shallow services
They are particularly well suited to upgrades where pedestrian safety or asset protection needs to be improved without major structural modification.
Strength Through Design & Installation
While surface-mounted bollards do not benefit from embedment depth, strength is achieved through correct design, substrate suitability, and installation quality.
Sentry Surface-Mounted Bollards are manufactured from heavy-duty steel and supplied with engineered base plates designed to distribute loads into the supporting concrete slab. When installed onto suitable concrete with correctly specified mechanical anchors, surface-mounted bollards provide reliable resistance to low-speed vehicle impacts typical of car parks and commercial sites.
Concrete condition, slab thickness, and anchor type are critical to performance. MSA Bollards can provide guidance on installation requirements to ensure surface-mounted bollards are suitable for the intended application.

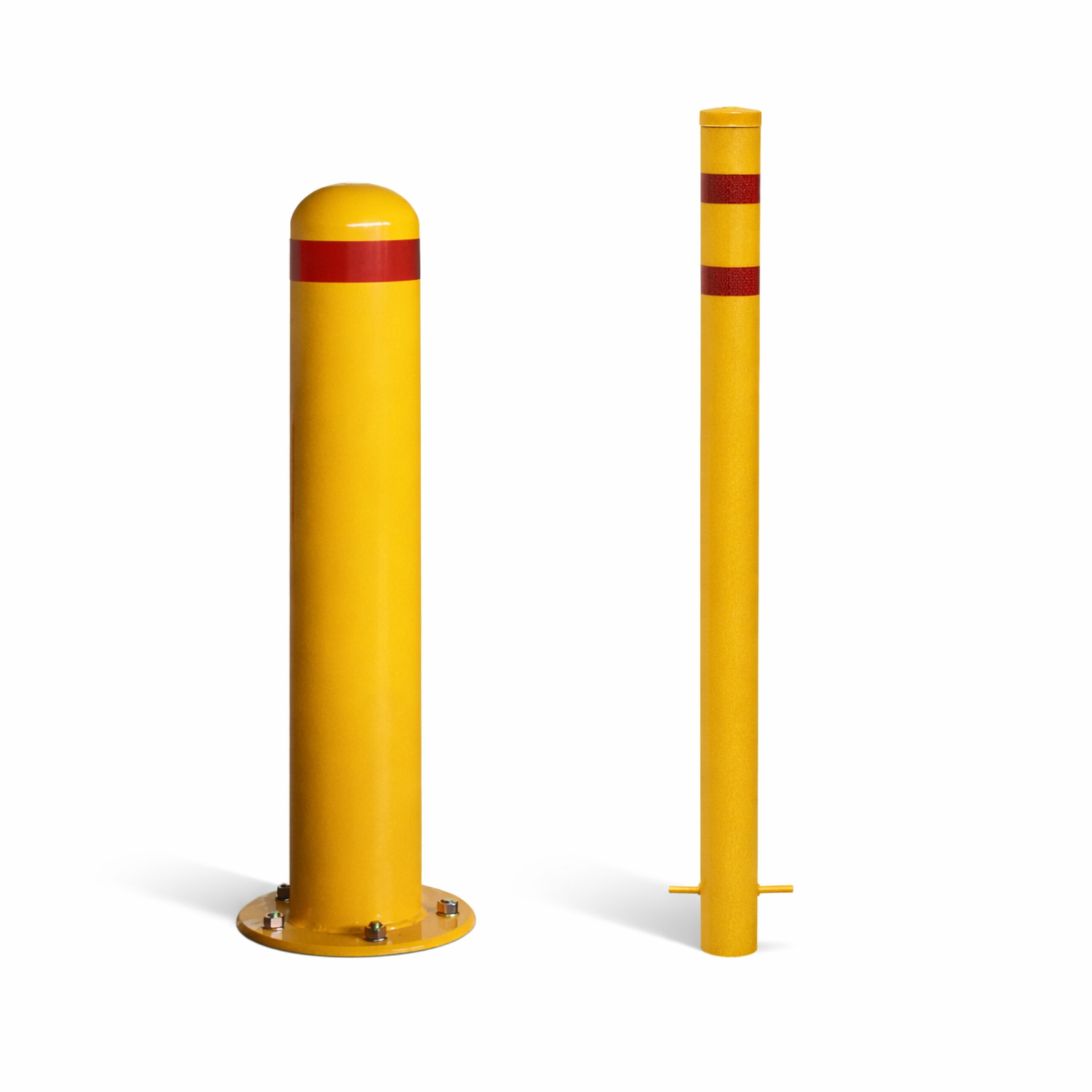

Surface-Mounted vs In-Ground Bollards
Surface-mounted bollards are not a direct replacement for in-ground bollards. Instead, they offer an alternative installation method when excavation is not feasible.
In-ground bollards are generally preferred where maximum impact resistance is required and excavation is possible
Surface-mounted bollards are ideal for retrofit projects, service-restricted sites, and existing concrete slabs
Selecting the correct bollard type depends on site conditions, installation constraints, and performance requirements.
Materials, Finishes & Customisation Options
Sentry Surface-Mounted Bollards are manufactured using quality steel and locally sourced components to suit a wide range of environments.
Available finishes:
Galvanised for corrosion resistance in outdoor applications
Colour powder coated finishes for safety, branding, or architectural integration

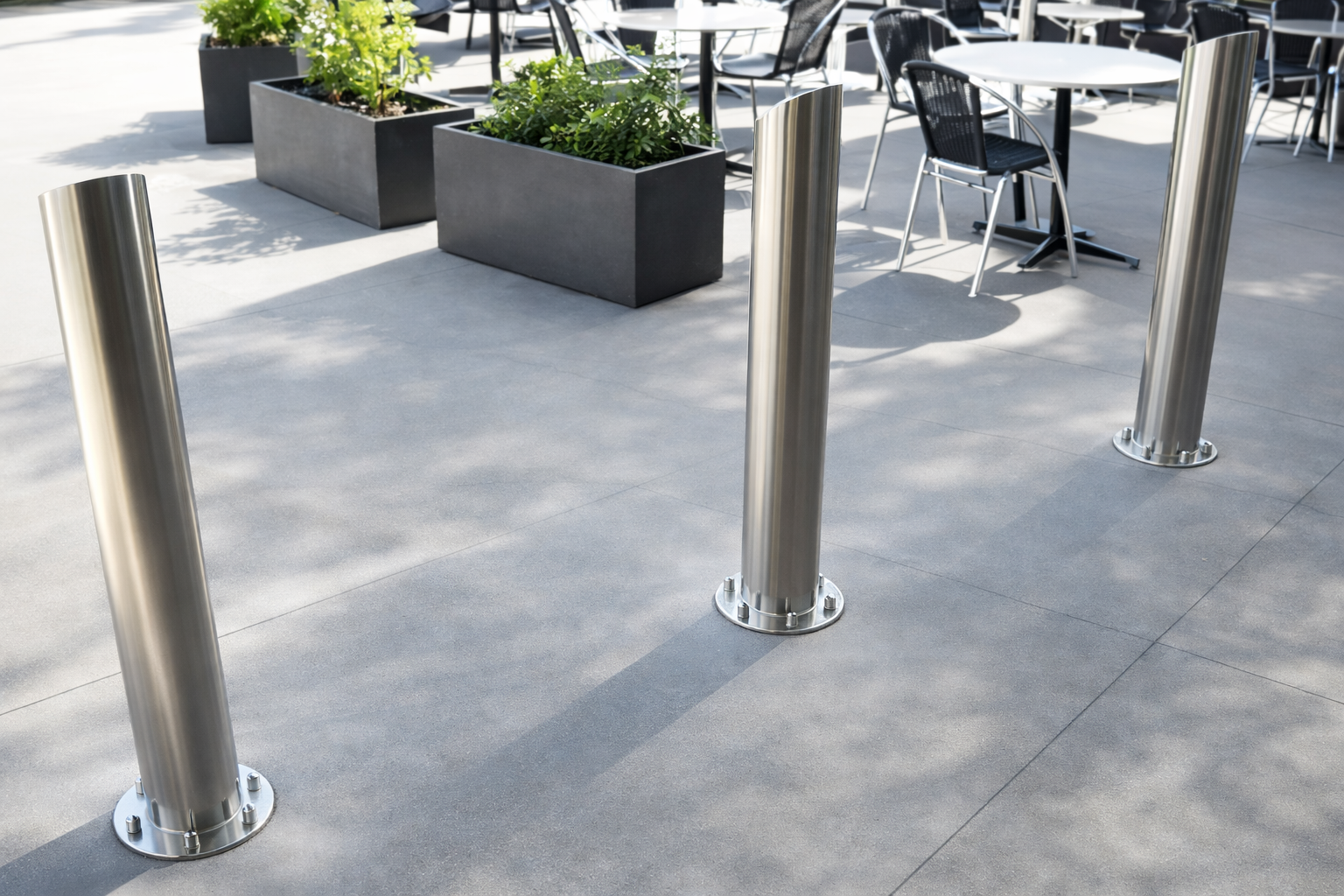

Stainless steel options for premium, coastal, or corrosive environments
Powder-coated finishes are applied over galvanised substrates to enhance durability.
Customisation options:
Multiple diameters and heights
High-visibility reflective bands
Engraving or identification marking
Custom configurations can be manufactured to suit specific site or project requirements.
Bollard Tops & Architectural Options
To suit different environments and design requirements, Sentry Surface-Mounted Bollards can be supplied with a range of top styles:
Cap top (standard knock-on cap)

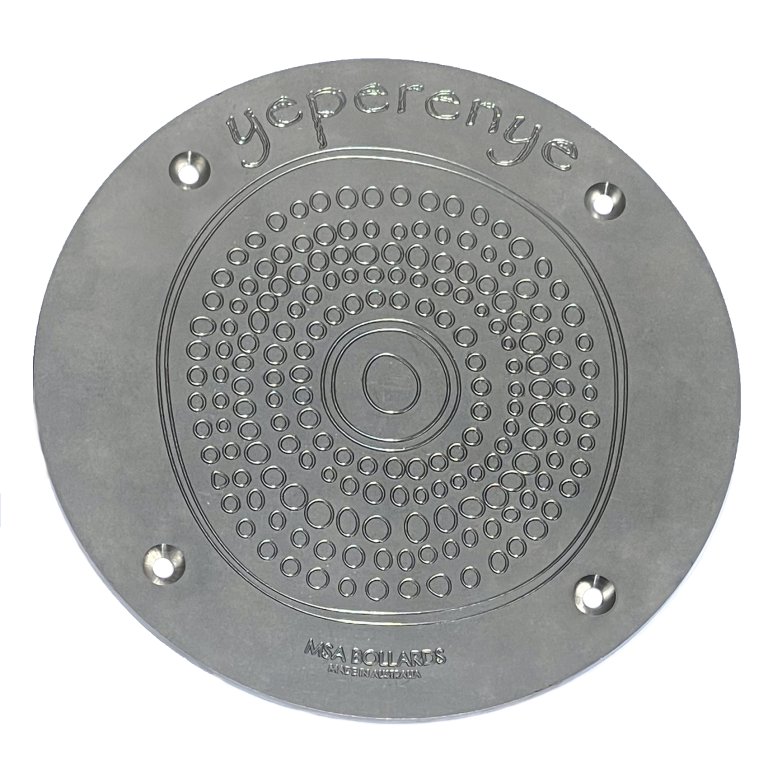

Flat top (available plain or engraved)
Domed top
Mitred or sloped top
Architectural tops
These options allow bollards to integrate seamlessly into both utilitarian and architectural settings.
When Are Surface-Mounted Bollards the Right Choice?
Surface-mounted bollards are typically specified when:
Excavation is not possible due to underground services, post-tension slabs, or structural limitations
Existing concrete surfaces must be retained without cutting or major civil works
Retrofit installation is required in operational environments
Permanent protection is needed without operable or removable systems
They are widely used in both new and existing facilities where in-ground installation would be disruptive or cost-prohibitive.
Australian Made. Built to Last.
MSA Bollards is an Australian-owned designer and manufacturer of bollards and safety infrastructure, supplying projects across Australia and New Zealand. With decades of industry experience, our Sentry range is trusted by councils, architects, engineers, and facility managers.
We provide advice, manufacturing, and ongoing support to ensure each installation is fit for purpose.
Standard Surface-Mounted Bollard Product Codes & Specifications
Please note: The table below lists our standard Sentry Surface-Mounted Bollard configurations that are generally held in stock. Multiple diameters, heights, finishes, and top styles are available. Custom sizes, materials, finishes, and configurations can be manufactured on request to suit specific site or project requirements.
Each product code represents a unique bollard configuration, allowing accurate specification, comparison, and ordering.
| Product Code | Diameter (mm) | Height (mm) | Finish | Description |
|---|---|---|---|---|
| S90C-900G | 90 | 900 | Galvanised | Sentry Surface Mount Bollards Dimensions: 90mm OD Length: 900mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 170mm dia. Top: Cap Top (Knock On) Finish: Galvanised Tape: Class 1 MSA Branded Red reflective tape |
| S101C-900G | 101 | 900 | Galvanised | Sentry Surface Mount Bollards Dimensions: 101mm OD Length: 900mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 190mm dia. Top: Cap Top (Knock On) Finish: Galvanised Tape: Class 1 MSA Branded Red reflective tape |
| S115C-900G | 115 | 900 | Galvanised | Sentry Surface Mount Bollards Dimensions: 115mm OD Length: 900mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 200mm dia. Top: Cap Top (Knock On) Finish: Galvanised Tape: Class 1 MSA Branded Red reflective tape |
| S140C-900G | 140 | 900 | Galvanised | Sentry Surface Mount Bollards Dimensions: 140mm OD Length: 900mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 220mm dia. Top: Cap Top (Knock On) Finish: Galvanised Tape: Class 1 MSA Branded Red reflective tape |
| S165C-900G | 165 | 900 | Galvanised | Sentry Surface Mount Bollards Dimensions: 165mm OD Length: 900mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 246mm dia. Top: Cap Top (Knock On) Finish: Galvanised Tape: Class 1 MSA Branded Red reflective tape |
| S220C-900G | 220 | 900 | Galvanised | Sentry Surface Mount Bollards Dimensions: 220mm OD Length: 900mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 340mm dia. Top: Cap Top (Knock On) Finish: Galvanised Tape: Class 1 MSA Branded Red reflective tape |
| S323F-900G | 323 | 900 | Galvanised | Sentry Surface Mount Bollards Dimensions: 323mm OD Length: 900mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 440mm dia. Top: Welded Flat Top Finish: Galvanised Tape: Class 1 MSA Branded Red reflective tape |
| S90C-900P | 90 | 900 | Powder Coated | Sentry Surface Mount Bollards Dimensions: 90mm OD Length: 900mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 170mm dia. Top: Cap Top (Knock On) Finish: Powder Coated Y14 Safety Yellow Tape: Class 1 MSA Branded Red reflective tape |
| S101C-900P | 101 | 900 | Powder Coated | Sentry Surface Mount Bollards Dimensions: 101mm OD Length: 900mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 190mm dia. Top: Cap Top (Knock On) Finish: Powder Coated Y14 Safety Yellow Tape: Class 1 MSA Branded Red reflective tape |
| S115C-900P | 115 | 900 | Powder Coated | Sentry Surface Mount Bollards Dimensions: 115mm OD Length: 900mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 200mm dia. Top: Cap Top (Knock On) Finish: Powder Coated Y14 Safety Yellow Tape: Class 1 MSA Branded Red reflective tape |
| S140C-900P | 140 | 900 | Powder Coated | Sentry Surface Mount Bollards Dimensions: 140mm OD Length: 900mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 220mm dia. Top: Cap Top (Knock On) Finish: Powder Coated Y14 Safety Yellow Tape: Class 1 MSA Branded Red reflective tape |
| S165C-900P | 165 | 900 | Powder Coated | Sentry Surface Mount Bollards Dimensions: 165mm OD Length: 900mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 246mm dia. Top: Cap Top (Knock On) Finish: Powder Coated Y14 Safety Yellow Tape: Class 1 MSA Branded Red reflective tape |
| S220C-900P | 220 | 900 | Powder Coated | Sentry Surface Mount Bollards Dimensions: 220mm OD Length: 900mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 340mm dia. Top: Cap Top (Knock On) Finish: Powder Coated Y14 Safety Yellow Tape: Class 1 MSA Branded Red reflective tape |
| S323F-900P | 323 | 900 | Powder Coated | Sentry Surface Mount Bollards Dimensions: 323mm OD Length: 900mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 440mm dia. Top: Welded Flat Top Finish: Powder Coated Y14 Safety Yellow Tape: Class 1 MSA Branded Red reflective tape |
| S90F-900S10-304 | 90 | 900 | Stainless Steel | Sentry Surface Mount Bollards Dimensions: 90mm OD Length: 900mm Materials: 304 Stainless Steel Sch 10 Pipe Base Plate: 170mm dia. Top: Welded Flat Top Finish: Polished Tape: Class 1 MSA Branded Red reflective tape |
| S115F-900S10-304 | 115 | 900 | Stainless Steel | Sentry Surface Mount Bollards Dimensions: 115mm OD Length: 900mm Materials: 304 Stainless Steel Sch 10 Pipe Base Plate: 200mm dia. Top: Welded Flat Top Finish: Polished Tape: Class 1 MSA Branded Red reflective tape |
| S140F-900S10-304 | 140 | 900 | Stainless Steel | Sentry Surface Mount Bollards Dimensions: 140mm OD Length: 900mm Materials: 304 Stainless Steel Sch 10 Pipe Base Plate: 220mm dia. Top: Welded Flat Top Finish: Polished Tape: Class 1 MSA Branded Red reflective tape |
| S165F-900S10-304 | 165 | 900 | Stainless Steel | Sentry Surface Mount Bollards Dimensions: 165mm OD Length: 900mm Materials: 304 Stainless Steel Sch 10 Pipe Base Plate: 246mm dia. Top: Welded Flat Top Finish: Polished Tape: Class 1 MSA Branded Red reflective tape |
| S220F-900S10-304 | 220 | 900 | Stainless Steel | Sentry Surface Mount Bollards Dimensions: 220mm OD Length: 900mm Materials: 304 Stainless Steel Sch 10 Pipe Base Plate: 340mm dia. Top: Welded Flat Top Finish: Polished Tape: Class 1 MSA Branded Red reflective tape |
| S323F-900S10-304 | 323 | 900 | Stainless Steel | Sentry Surface Mount Bollards Dimensions: 323mm OD Length: 900mm Materials: 304 Stainless Steel Sch 10 Pipe Base Plate: 440mm dia. Top: Welded Flat Top Finish: Polished Tape: Class 1 MSA Branded Red reflective tape |
| S90C-1200G | 90 | 1200 | Galvanised | Sentry Surface Mount Bollards Dimensions: 90mm OD Length: 1200mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 170mm dia. Top: Cap Top (Knock On) Finish: Galvanised Tape: Class 1 MSA Branded Red reflective tape |
| S101C-1200G | 101 | 1200 | Galvanised | Sentry Surface Mount Bollards Dimensions: 101mm OD Length: 1200mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 190mm dia. Top: Cap Top (Knock On) Finish: Galvanised Tape: Class 1 MSA Branded Red reflective tape |
| S115C-1200G | 115 | 1200 | Galvanised | Sentry Surface Mount Bollards Dimensions: 115mm OD Length: 1200mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 200mm dia. Top: Cap Top (Knock On) Finish: Galvanised Tape: Class 1 MSA Branded Red reflective tape |
| S140C-1200G | 140 | 1200 | Galvanised | Sentry Surface Mount Bollards Dimensions: 140mm OD Length: 1200mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 220mm dia. Top: Cap Top (Knock On) Finish: Galvanised Tape: Class 1 MSA Branded Red reflective tape |
| S165C-1200G | 165 | 1200 | Galvanised | Sentry Surface Mount Bollards Dimensions: 165mm OD Length: 1200mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 246mm dia. Top: Cap Top (Knock On) Finish: Galvanised Tape: Class 1 MSA Branded Red reflective tape |
| S220C-1200G | 220 | 1200 | Galvanised | Sentry Surface Mount Bollards Dimensions: 220mm OD Length: 1200mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 340mm dia. Top: Cap Top (Knock On) Finish: Galvanised Tape: Class 1 MSA Branded Red reflective tape |
| S323F-1200G | 323 | 1200 | Galvanised | Sentry Surface Mount Bollards Dimensions: 323mm OD Length: 1200mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 440mm dia. Top: Welded Flat Top Finish: Galvanised Tape: Class 1 MSA Branded Red reflective tape |
| S90C-1200P | 90 | 1200 | Powder Coated | Sentry Surface Mount Bollards Dimensions: 90mm OD Length: 1200mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 170mm dia. Top: Cap Top (Knock On) Finish: Powder Coated Y14 Safety Yellow Tape: Class 1 MSA Branded Red reflective tape |
| S101C-1200P | 101 | 1200 | Powder Coated | Sentry Surface Mount Bollards Dimensions: 101mm OD Length: 1200mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 190mm dia. Top: Cap Top (Knock On) Finish: Powder Coated Y14 Safety Yellow Tape: Class 1 MSA Branded Red reflective tape |
| S115C-1200P | 115 | 1200 | Powder Coated | Sentry Surface Mount Bollards Dimensions: 115mm OD Length: 1200mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 200mm dia. Top: Cap Top (Knock On) Finish: Powder Coated Y14 Safety Yellow Tape: Class 1 MSA Branded Red reflective tape |
| S140C-1200P | 140 | 1200 | Powder Coated | Sentry Surface Mount Bollards Dimensions: 140mm OD Length: 1200mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 220mm dia. Top: Cap Top (Knock On) Finish: Powder Coated Y14 Safety Yellow Tape: Class 1 MSA Branded Red reflective tape |
| S165C-1200P | 165 | 1200 | Powder Coated | Sentry Surface Mount Bollards Dimensions: 165mm OD Length: 1200mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 246mm dia. Top: Cap Top (Knock On) Finish: Powder Coated Y14 Safety Yellow Tape: Class 1 MSA Branded Red reflective tape |
| S220C-1200P | 220 | 1200 | Powder Coated | Sentry Surface Mount Bollards Dimensions: 220mm OD Length: 1200mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 340mm dia. Top: Cap Top (Knock On) Finish: Powder Coated Y14 Safety Yellow Tape: Class 1 MSA Branded Red reflective tape |
| S323F-1200P | 323 | 1200 | Powder Coated | Sentry Surface Mount Bollards Dimensions: 323mm OD Length: 1200mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 440mm dia. Top: Welded Flat Top Finish: Powder Coated Y14 Safety Yellow Tape: Class 1 MSA Branded Red reflective tape |
| S90F-1200S10-304 | 90 | 1200 | Stainless Steel | Sentry Surface Mount Bollards Dimensions: 90mm OD Length: 1200mm Materials: 304 Stainless Steel Sch 10 Pipe Base Plate: 170mm dia. Top: Welded Flat Top Finish: Polished Tape: Class 1 MSA Branded Red reflective tape |
| S115F-1200S10-304 | 115 | 1200 | Stainless Steel | Sentry Surface Mount Bollards Dimensions: 115mm OD Length: 1200mm Materials: 304 Stainless Steel Sch 10 Pipe Base Plate: 200mm dia. Top: Welded Flat Top Finish: Polished Tape: Class 1 MSA Branded Red reflective tape |
| S140F-1200S10-304 | 140 | 1200 | Stainless Steel | Sentry Surface Mount Bollards Dimensions: 140mm OD Length: 1200mm Materials: 304 Stainless Steel Sch 10 Pipe Base Plate: 220mm dia. Top: Welded Flat Top Finish: Polished Tape: Class 1 MSA Branded Red reflective tape |
| S165F-1200S10-304 | 165 | 1200 | Stainless Steel | Sentry Surface Mount Bollards Dimensions: 165mm OD Length: 1200mm Materials:304 Stainless Steel Sch 10 Pipe Base Plate: 246mm dia. Top: Welded Flat Top Finish: Polished Tape: Class 1 MSA Branded Red reflective tape |
| S220F-1200S10-304 | 220 | 1200 | Stainless Steel | Sentry Surface Mount Bollards Dimensions: 220mm OD Length: 1200mm Materials: 304 Stainless Steel Sch 10 Pipe Base Plate: 340mm dia. Top: Welded Flat Top Finish: Polished Tape: Class 1 MSA Branded Red reflective tape |
| S323F-1200S10-304 | 323 | 1200 | Stainless Steel | Sentry Surface Mount Bollards Dimensions: 323mm OD Length: 1200mm Materials: 304 Stainless Steel Sch 10 Pipe Base Plate: 440mm dia. Top: Welded Flat Top Finish: Polished Tape: Class 1 MSA Branded Red reflective tape |
Get Advice or Request a Quote
If you’re considering surface-mounted bollards for your site, our team can help assess suitability and recommend appropriate configurations. Contact MSA Bollards to discuss your project requirements or request a quotation.
