Key Removable Bollards
When Are Disabled Car Park Bollards Required?
- Compliance with AS 2890.6 is required for new or upgraded facilities
- Accessible parking bays require protection from vehicle overrun or misuse
- Shared zones or access paths need to be clearly defined
Secure, Removable Bollards for Controlled Vehicle Access
Key removable bollards provide a secure and flexible solution for sites that require controlled vehicle access without the complexity of powered or automated systems. When locked in place, they function as a strong physical barrier. When unlocked and removed, the ground sleeve is left flush with the surrounding surface, allowing authorised vehicles or pedestrians to pass through unobstructed.
MSA Bollards’ Sentry Key Removable Bollards use an integral internal mechanical locking system, offering a higher level of security and tamper resistance than external padlock-style systems. This makes them a preferred option for councils, retail environments, and public spaces where reliability, durability, and controlled access are critical.
What Are Disabled Car Park Bollards?
Disabled car park bollards are fixed bollards specifically designed and positioned to control vehicle movement around accessible parking bays. Their primary purpose is not security, but access management — ensuring that parking spaces, shared zones, and access paths remain clear and usable for people with mobility impairments.
Under AS 2890.6, bollards used in disabled parking areas must meet specific dimensional and visibility requirements to ensure they are easily detectable and do not create hazards for pedestrians or mobility aids.
Manufactured to AS 2890.6 Standards
All Sentry Disabled Car Park Bollards are manufactured to comply with AS 2890.6, which governs the design and layout of off-street parking facilities for people with disabilities.
Key compliance considerations:
Appropriate bollard height above ground (1300mm)
Adequate visibility through colour contrast and reflective markings (Galvanised, Stainless Steel, or Y14 Safety Yellow with red reflective and Blaze Blue with white reflective)
Clear differentiation from surrounding surfaces (gloss colours & reflective tape)
Placement that protects access zones without creating obstructions (placement as per Australian Standard)
By manufacturing bollards to suit these requirements, MSA Bollards helps designers, builders, and facility managers meet accessibility obligations with confidence.
Typical Applications

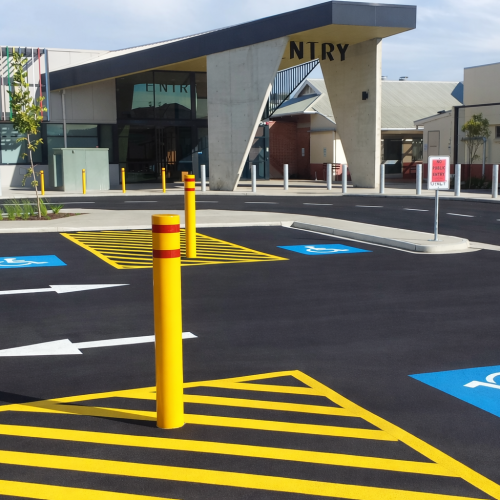

Sentry Disabled Car Park Bollards are widely used in:
Shopping centres and retail car parks
Hospitals and medical facilities
Universities, schools, and TAFE campuses
Council-owned car parks and civic buildings
Commercial office developments
Public transport interchanges
In each case, the bollards assist in maintaining clear, compliant access for people with disabilities.
Installation Options
To suit different site conditions, Sentry Disabled Car Park Bollards are available in multiple installation types:

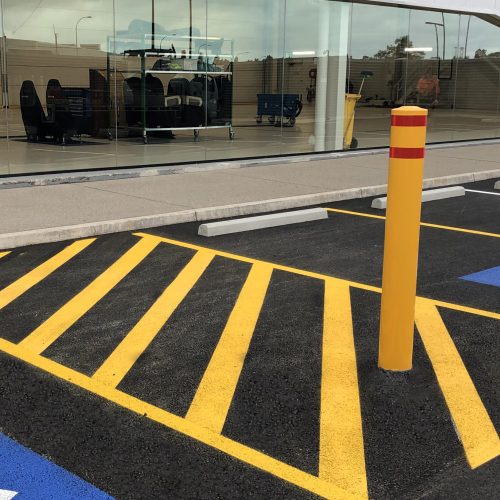

Fixed In-Ground Installation
Installed into concrete footings below ground level, in-ground bollards provide a permanent, low-maintenance solution where excavation is possible.
Surface-Mounted Installation
Surface-mounted bollards are fixed to existing concrete slabs using base plates and mechanical anchors. This option is commonly used for retrofit projects or sites where excavation is restricted.
The correct installation method is determined by site conditions, slab construction, and project requirements.
Materials, Finishes & Customisation Options
Sentry Disabled Car Park Bollards are manufactured using quality materials suitable for long-term outdoor use.
Standard finishes:
Galvanised for corrosion resistance
Powder coated finishes for visibility and compliance

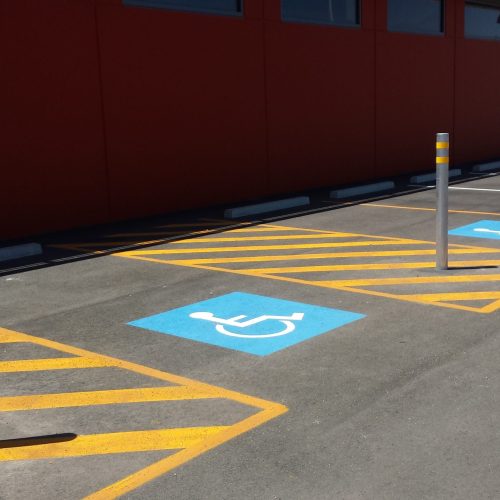

Stainless steel options for premium or corrosive environments
Available options:
Multiple diameters and materials
Cap top or flat top designs
In-ground or surface-mounted configurations
All options are selected to support compliance while maintaining durability.
Visibility & Safety Features
Visibility is a key requirement for disabled parking infrastructure.
Sentry Disabled Car Park Bollards are supplied with:

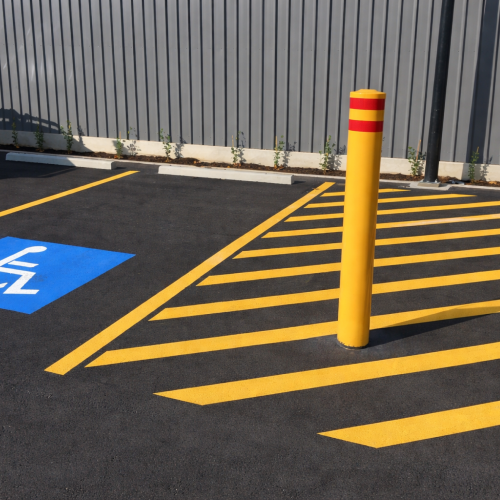

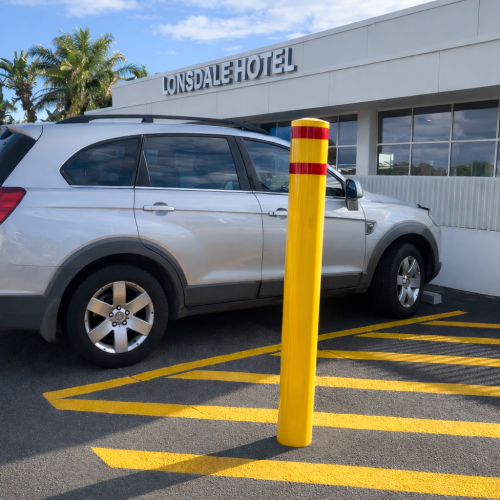

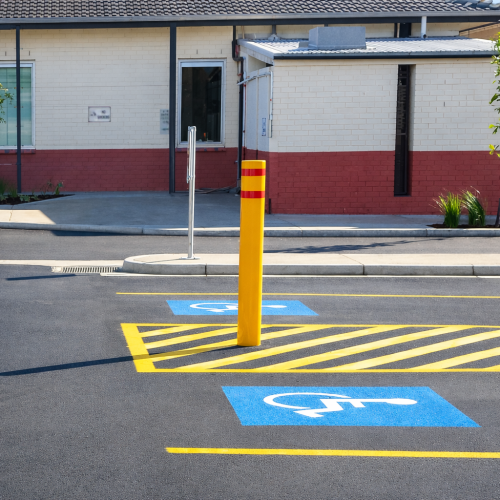

High-visibility finishes, including safety yellow powder coating
Class 1 reflective bands to improve detectability in low-light conditions

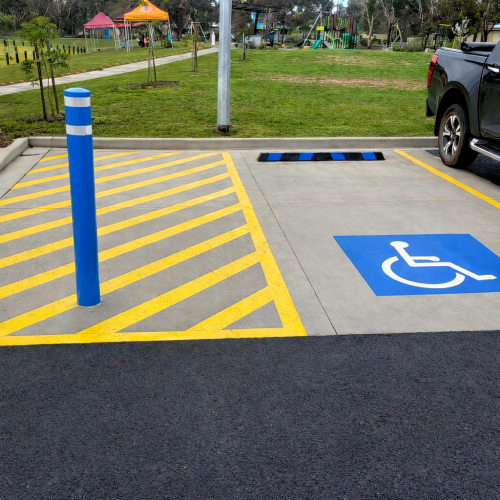

Optional colour variations (such as blue) to align with accessible parking markings
These features help ensure the bollards are easily seen by both drivers and pedestrians.
Why Choose MSA Bollards?
MSA Bollards is an Australian-owned manufacturer with decades of experience supplying compliant bollard and safety infrastructure throughout Australia and New Zealand.
Our Sentry range is trusted by:
Local councils
Access consultants
Architects and engineers
Builders and facility managers
We understand the importance of accessibility compliance and provide products designed to meet both regulatory and practical requirements.
Standard Disabled Car Park Bollard Product Codes & Specifications
Please note: The table below lists our standard Sentry Disabled Car Park Bollard configurations manufactured to meet the requirements of AS 2890.6 – Parking Facilities: Off-Street Parking for People with Disabilities.
Products are available in both fixed in-ground and surface-mounted installation types, with multiple diameters and finishes to suit different site conditions. Standard finishes include galvanised, high-visibility powder coated, and stainless steel options.
Custom sizes, finishes, and configurations can be manufactured on request to suit specific project or compliance requirements.
| Product Code | Installation Method | Diameter (mm) | Finish | Description |
|---|---|---|---|---|
| DIG90C-1600G | In-Ground | 90 | Galvanised | Fixed In-Ground Disabled Parking Bollard Manufactured to AS2890.6 Standards Dimensions: 90mm OD Overall Length: 1600mm Above Ground: 1300mm Materials: Hot Dip Galvanised Steel Pipe Top: Cap Top (Knock On) Finish: Galvanised Tape: Class 1 MSA Branded Red reflective tape |
| DIG101C-1600G | In-Ground | 101 | Galvanised | Fixed In-Ground Disabled Parking Bollard Manufactured to AS2890.6 Standards Dimensions: 101mm OD Overall Length: 1600mm Above Ground: 1300mm Materials: Hot Dip Galvanised Steel Pipe Top: Cap Top (Knock On) Finish: Galvanised Tape: Class 1 MSA Branded Red reflective tape |
| DIG115C-1600G | In-Ground | 115 | Galvanised | Fixed In-Ground Disabled Parking Bollard Manufactured to AS2890.6 Standards Dimensions: 115mm OD Overall Length: 1600mm Above Ground: 1300mm Materials: Hot Dip Galvanised Steel Pipe Top: Cap Top (Knock On) Finish: Galvanised Tape: Class 1 MSA Branded Red reflective tape |
| DIG140C-1600G | In-Ground | 140 | Galvanised | Fixed In-Ground Disabled Parking Bollard Manufactured to AS2890.6 Standards Dimensions: 140mm OD Overall Length: 1600mm Above Ground: 1300mm Materials: Hot Dip Galvanised Steel Pipe Top: Cap Top (Knock On) Finish: Galvanised Tape: Class 1 MSA Branded Red reflective tape |
| DIG165C-1700G | In-Ground | 165 | Galvanised | Fixed In-Ground Disabled Parking Bollard Manufactured to AS2890.6 Standards Dimensions: 165mm OD Overall Length: 1700mm Above Ground: 1300mm Materials: Hot Dip Galvanised Steel Pipe Top: Cap Top (Knock On) Finish: Galvanised Tape: Class 1 MSA Branded Red reflective tape |
| DIG220C-1700G | In-Ground | 220 | Galvanised | Fixed In-Ground Disabled Parking Bollard Manufactured to AS2890.6 Standards Dimensions: 220mm OD Overall Length: 1700mm Above Ground: 1300mm Materials: Hot Dip Galvanised Steel Pipe Top: Cap Top (Knock On) Finish: Galvanised Tape: Class 1 MSA Branded Red reflective tape |
| DIG323F-1700G | In-Ground | 323 | Galvanised | Fixed In-Ground Disabled Parking Bollard Manufactured to AS2890.6 Standards Dimensions: 323mm OD Overall Length: 1700mm Above Ground: 1300mm Materials: Hot Dip Galvanised Steel Pipe Top: Welded Flat Top Finish: Galvanised Tape: Class 1 MSA Branded Red reflective tape |
| DIG90C-1600P | In-Ground | 90 | Powder Coated | Fixed In-Ground Disabled Parking Bollard Manufactured to AS2890.6 Standards Dimensions: 90mm OD Overall Length: 1600mm Above Ground: 1300mm Materials: Hot Dip Galvanised Steel Pipe Top: Cap Top (Knock On) Finish: Powder Coated Y14 Safety Yellow (Standard) also available in Blaze Blue Tape: Class 1 MSA Branded Red reflective tape |
| DIG101C-1600P | In-Ground | 101 | Powder Coated | Fixed In-Ground Disabled Parking Bollard Manufactured to AS2890.6 Standards Dimensions: 101mm OD Overall Length: 1600mm Above Ground: 1300mm Materials: Hot Dip Galvanised Steel Pipe Top: Cap Top (Knock On) Finish: Powder Coated Y14 Safety Yellow (Standard) also available in Blaze Blue Tape: Class 1 MSA Branded Red reflective tape |
| DIG115C-1600P | In-Ground | 115 | Powder Coated | Fixed In-Ground Disabled Parking Bollard Manufactured to AS2890.6 Standards Dimensions: 115mm OD Overall Length: 1600mm Above Ground: 1300mm Materials: Hot Dip Galvanised Steel Pipe Top: Cap Top (Knock On) Finish: Powder Coated Y14 Safety Yellow (Standard) also available in Blaze Blue Tape: Class 1 MSA Branded Red reflective tape |
| DIG140C-1600P | In-Ground | 140 | Powder Coated | Fixed In-Ground Disabled Parking Bollard Manufactured to AS2890.6 Standards Dimensions: 140mm OD Overall Length: 1600mm Above Ground: 1300mm Materials: Hot Dip Galvanised Steel Pipe Top: Cap Top (Knock On) Finish: Powder Coated Y14 Safety Yellow (Standard) also available in Blaze Blue Tape: Class 1 MSA Branded Red reflective tape |
| DIG165C-1700P | In-Ground | 165 | Powder Coated | Fixed In-Ground Disabled Parking Bollard Manufactured to AS2890.6 Standards Dimensions: 165mm OD Overall Length: 1700mm Above Ground: 1300mm Materials: Hot Dip Galvanised Steel Pipe Top: Cap Top (Knock On) Finish: Powder Coated Y14 Safety Yellow (Standard) also available in Blaze Blue Tape: Class 1 MSA Branded Red reflective tape |
| DIG220C-1700P | In-Ground | 220 | Powder Coated | Fixed In-Ground Disabled Parking Bollard Manufactured to AS2890.6 Standards Dimensions: 220mm OD Overall Length: 1700mm Above Ground: 1300mm Materials: Hot Dip Galvanised Steel Pipe Top: Cap Top (Knock On) Finish: Powder Coated Y14 Safety Yellow (Standard) also available in Blaze Blue Tape: Class 1 MSA Branded Red reflective tape |
| DIG323F-1700P | In-Ground | 323 | Powder Coated | Fixed In-Ground Disabled Parking Bollard Manufactured to AS2890.6 Standards Dimensions: 323mm OD Overall Length: 1700mm Above Ground: 1300mm Materials: Hot Dip Galvanised Steel Pipe Top: Welded Flat Top Finish: Powder Coated Y14 Safety Yellow (Standard) also available in Blaze Blue Tape: Class 1 MSA Branded Red reflective tape |
| DIG90F-1600S10-304 | In-Ground | 90 | Stainless Steel | Fixed In-Ground Disabled Parking Bollard Manufactured to AS2890.6 Standards Dimensions: 90mm OD Overall Length: 1600mm Above Ground: 1300mm Materials: 304 Stainless Steel Sch 10 Pipe Top: Flat Top Finish: Polished Tape: Class 1 MSA Branded Red reflective tape |
| DIG115F-1600S10-304 | In-Ground | 115 | Stainless Steel | Fixed In-Ground Disabled Parking Bollard Manufactured to AS2890.6 Standards Dimensions: 115mm OD Overall Length: 1600mm Above Ground: 1300mm Materials: 304 Stainless Steel Sch 10 Pipe Top: Flat Top Finish: Polished Tape: Class 1 MSA Branded Red reflective tape |
| DIG140F-1600S10-304 | In-Ground | 140 | Stainless Steel | Fixed In-Ground Disabled Parking Bollard Manufactured to AS2890.6 Standards Dimensions: 140mm OD Overall Length: 1600mm Above Ground: 1300mm Materials: 304 Stainless Steel Sch 10 Pipe Top: Flat Top Finish: Polished Tape: Class 1 MSA Branded Red reflective tape |
| DIG165F-1700S10-304 | In-Ground | 165 | Stainless Steel | Fixed In-Ground Disabled Parking Bollard Manufactured to AS2890.6 Standards Dimensions: 165mm OD Overall Length: 1700mm Above Ground: 1300mm Materials: 304 Stainless Steel Sch 10 Pipe Top: Flat Top Finish: Polished Tape: Class 1 MSA Branded Red reflective tape |
| DIG220F-1700S10-304 | In-Ground | 220 | Stainless Steel | Fixed In-Ground Disabled Parking Bollard Manufactured to AS2890.6 Standards Dimensions: 220mm OD Overall Length: 1700mm Above Ground: 1300mm Materials: 304 Stainless Steel Sch 10 Pipe Top: Flat Top Finish: Polished Tape: Class 1 MSA Branded Red reflective tape |
| DIG323F-1700S10-304 | In-Ground | 323 | Stainless Steel | Fixed In-Ground Disabled Parking Bollard Manufactured to AS2890.6 Standards Dimensions: 323mm OD Overall Length: 1700mm Above Ground: 1300mm Materials: 304 Stainless Steel Sch 10 Pipe Top: Flat Top Finish: Polished Tape: Class 1 MSA Branded Red reflective tape |
| DS90C-1300G | Surface-Mount | 90 | Galvanised | Surface Mount Disabled Carpark Bollards Manufactured to AS2890.6 Standards Dimensions: 90mm OD Length: 1300mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 170mm dia. Top: Cap Top (Knock On) Finish: Galvanised Tape: Class 1 MSA Branded Red reflective tape |
| DS101C-1300G | Surface-Mount | 101 | Galvanised | Surface Mount Disabled Carpark Bollards Manufactured to AS2890.6 Standards Dimensions: 101mm OD Length: 1300mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 190mm dia. Top: Cap Top (Knock On) Finish: Galvanised Tape: Class 1 MSA Branded Red reflective tape |
| DS115C-1300G | Surface-Mount | 115 | Galvanised | Surface Mount Disabled Carpark Bollards Manufactured to AS2890.6 Standards Dimensions: 115mm OD Length: 1300mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 200mm dia. Top: Cap Top (Knock On) Finish: Galvanised Tape: Class 1 MSA Branded Red reflective tape |
| DS140C-1300G | Surface-Mount | 140 | Galvanised | Surface Mount Disabled Carpark Bollards Manufactured to AS2890.6 Standards Dimensions: 140mm OD Length: 1300mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 220mm dia. Top: Cap Top (Knock On) Finish: Galvanised Tape: Class 1 MSA Branded Red reflective tape |
| DS165C-1300G | Surface-Mount | 165 | Galvanised | Surface Mount Disabled Carpark Bollards Manufactured to AS2890.6 Standards Dimensions: 165mm OD Length: 1300mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 246mm dia. Top: Cap Top (Knock On) Finish: Galvanised Tape: Class 1 MSA Branded Red reflective tape |
| DS220C-1300G | Surface-Mount | 220 | Galvanised | Surface Mount Disabled Carpark Bollards Manufactured to AS2890.6 Standards Dimensions: 220mm OD Length: 1300mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 340mm dia. Top: Cap Top (Knock On) Finish: Galvanised Tape: Class 1 MSA Branded Red reflective tape |
| DS323F-1300G | Surface-Mount | 323 | Galvanised | Surface Mount Disabled Carpark Bollards Manufactured to AS2890.6 Standards Dimensions: 323mm OD Length: 1300mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 440mm dia. Top: Welded Flat Top Finish: Galvanised Tape: Class 1 MSA Branded Red reflective tape |
| DS90C-1300G | Surface-Mount | 90 | Powder Coated | Surface Mount Disabled Carpark Bollards Manufactured to AS2890.6 Standards Dimensions: 90mm OD Length: 1300mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 170mm dia. Top: Cap Top (Knock On) Finish: Powder Coated Y14 Safety Yellow (Standard) also available in Blaze Blue Tape: Class 1 MSA Branded Red reflective tape |
| DS101C-1300G | Surface-Mount | 101 | Powder Coated | Surface Mount Disabled Carpark Bollards Manufactured to AS2890.6 Standards Dimensions: 101mm OD Length: 1300mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 190mm dia. Top: Cap Top (Knock On) Finish: Powder Coated Y14 Safety Yellow (Standard) also available in Blaze Blue Tape: Class 1 MSA Branded Red reflective tape |
| DS115C-1300G | Surface-Mount | 115 | Powder Coated | Surface Mount Disabled Carpark Bollards Manufactured to AS2890.6 Standards Dimensions: 115mm OD Length: 1300mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 200mm dia. Top: Cap Top (Knock On) Finish: Powder Coated Y14 Safety Yellow (Standard) also available in Blaze Blue Tape: Class 1 MSA Branded Red reflective tape |
| DS140C-1300G | Surface-Mount | 140 | Powder Coated | Surface Mount Disabled Carpark Bollards Manufactured to AS2890.6 Standards Dimensions: 140mm OD Length: 1300mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 220mm dia. Top: Cap Top (Knock On) Finish: Powder Coated Y14 Safety Yellow (Standard) also available in Blaze Blue Tape: Class 1 MSA Branded Red reflective tape |
| DS165C-1300G | Surface-Mount | 165 | Powder Coated | Surface Mount Disabled Carpark Bollards Manufactured to AS2890.6 Standards Dimensions: 165mm OD Length: 1300mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 246mm dia. Top: Cap Top (Knock On) Finish: Powder Coated Y14 Safety Yellow (Standard) also available in Blaze Blue Tape: Class 1 MSA Branded Red reflective tape |
| DS220C-1300G | Surface-Mount | 220 | Powder Coated | Surface Mount Disabled Carpark Bollards Manufactured to AS2890.6 Standards Dimensions: 220mm OD Length: 1300mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 340mm dia. Top: Cap Top (Knock On) Finish: Powder Coated Y14 Safety Yellow (Standard) also available in Blaze Blue Tape: Class 1 MSA Branded Red reflective tape |
| DS323F-1300G | Surface-Mount | 323 | Powder Coated | Surface Mount Disabled Carpark Bollards Manufactured to AS2890.6 Standards Dimensions: 323mm OD Length: 1300mm Materials: Hot Dip Galvanised Steel Pipe Base Plate: 440mm dia. Top: Welded Flat Top Finish: Powder Coated Y14 Safety Yellow (Standard) also available in Blaze Blue Tape: Class 1 MSA Branded Red reflective tape |
| DS90F-1300S10-304 | Surface-Mount | 90 | Stainless Steel | Surface Mount Disabled Carpark Bollards Manufactured to AS2890.6 Standards Dimensions: 90mm OD Length: 1300mm Materials: 304 Stainless Steel Sch 10 Pipe Base Plate: 170mm dia. Top: Welded Flat Top Finish: Polished Tape: Class 1 MSA Branded Red reflective tape |
| DS115F-1300S10-304 | Surface-Mount | 115 | Stainless Steel | Surface Mount Disabled Carpark Bollards Manufactured to AS2890.6 Standards Dimensions: 115mm OD Length: 1300mm Materials: 304 Stainless Steel Sch 10 Pipe Base Plate: 200mm dia. Top: Welded Flat Top Finish: Polished Tape: Class 1 MSA Branded Red reflective tape |
| DS140F-1300S10-304 | Surface-Mount | 140 | Stainless Steel | Surface Mount Disabled Carpark Bollards Manufactured to AS2890.6 Standards Dimensions: 140mm OD Length: 1300mm Materials: 304 Stainless Steel Sch 10 Pipe Base Plate: 220mm dia. Top: Welded Flat Top Finish: Polished Tape: Class 1 MSA Branded Red reflective tape |
| DS165F-1300S10-304 | Surface-Mount | 165 | Stainless Steel | Surface Mount Disabled Carpark Bollards Manufactured to AS2890.6 Standards Dimensions: 165mm OD Length: 1300mm Materials:304 Stainless Steel Sch 10 Pipe Base Plate: 246mm dia. Top: Welded Flat Top Finish: Polished Tape: Class 1 MSA Branded Red reflective tape |
| DS220F-1300S10-304 | Surface-Mount | 220 | Stainless Steel | Surface Mount Disabled Carpark Bollards Manufactured to AS2890.6 Standards Dimensions: 220mm OD Length: 1300mm Materials: 304 Stainless Steel Sch 10 Pipe Base Plate: 340mm dia. Top: Welded Flat Top Finish: Polished Tape: Class 1 MSA Branded Red reflective tape |
| DS323F-1300S10-304 | Surface-Mount | 323 | Stainless Steel | Surface Mount Disabled Carpark Bollards Manufactured to AS2890.6 Standards Dimensions: 323mm OD Length: 1300mm Materials: 304 Stainless Steel Sch 10 Pipe Base Plate: 440mm dia. Top: Welded Flat Top Finish: Polished Tape: Class 1 MSA Branded Red reflective tape |
Get Advice or Request a Quote
If you are planning a new car park, upgrading existing facilities, or addressing accessibility compliance, our team can assist with selecting the appropriate disabled car park bollards for your project. Contact MSA Bollards to discuss your requirements or request a quotation.
